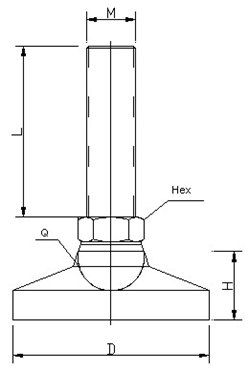

| 序 号 | 规格型号 | 螺纹直径 | 螺杆长度 | 六角对边直径 | 球头直径 | 底座高度 | 底座直径 | 单只、静态 垂直承载力 |
| M | L | Hex | Q | H | D | KG | ||
| D=50mm | ||||||||
| 1 | CUF-M830-50 | M8 | 30 | 14 | 13.5 | 18 | 50 | 400 |
| 2 | CUF-M1050-50 | M10 | 50 | 500 | ||||
| 3 | CUF-M1270-50 | M12 | 70 | 600 | ||||
| 4 | CUF-M1480-50 | M14 | 80 | 17 | 15.3 | 800 | ||
| 5 | CUF-M16100-50 | M16 | 100 | 1000 | ||||
| D=60mm | ||||||||
| 6 | CUF-M1270-60 | M12 | 70 | 17 | 15.3 | 22 | 60 | 600 |
| 7 | CUF-M1480-60 | M14 | 80 | 800 | ||||
| 8 | CUF-M16100-60 | M16 | 100 | 22 | 21.5 | 1000 | ||
| 9 | CUF-M20120-60 | M20 | 120 | 1200 | ||||
| D=80mm | ||||||||
| 10 | CUF-M1650-80 | M16 | 50 | 22 | 21.5 | 25 | 80 | 1200 |
| 11 | CUF-M1880-80 | M18 | 80 | 1500 | ||||
| 12 | CUF-M20100-80 | M20 | 100 | 1800 | ||||
| 13 | CUF-M24120-80 | M24 | 120 | 24 | 21.5 | 2200 | ||
| D=100mm | ||||||||
| 14 | CUF-M1680-100 | M16 | 80 | 22 | 21.5 | 25 | 100 | 1500 |
| 15 | CUF-M18100-100 | M18 | 100 | 1800 | ||||
| 16 | CUF-M20100-100 | M20 | 100 | 2000 | ||||
| 17 | CUF-M24120-100 | M24 | 120 | 24 | 21.5 | 2500 | ||
| 18 | CUF-M30150-100 | M30 | 150 | 30 | 26 | 4000 | ||
| D=120mm | ||||||||
| 19 | CUF-M1680-120 | M16 | 80 | 22 | 21.5 | 25 | 120 | 1500 |
| 20 | CUF-M18100-120 | M18 | 100 | 2000 | ||||
| 21 | CUF-M20100-120 | M20 | 100 | 2200 | ||||
| 22 | CUF-M24120-120 | M24 | 120 | 24 | 23.5 | 2800 | ||
| 23 | CUF-M30150-120 | M30 | 150 | 30 | 26 | 4500 | ||
| D=150mm | ||||||||
| 19 | CUF-M1680-150 | M16 | 80 | 22 | 21.5 | 25 | 120 | 2500 |
| 20 | CUF-M18100-150 | M18 | 100 | 3000 | ||||
| 21 | CUF-M20100-150 | M20 | 100 | 4000 | ||||
| 22 | CUF-M24120-150 | M24 | 120 | 24 | 23.5 | 4500 | ||
| 23 | CUF-M30150-150 | M30 | 150 | 30 | 26 | 6000 | ||
