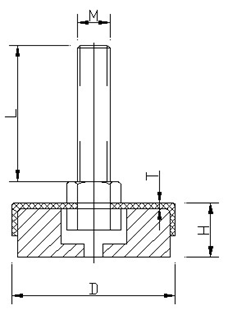

| 序 号 | 规格型号 | 可配螺纹直径 | 可配螺杆长度 | 底座高度 | 底座直径 | 底壳厚度 | 单只、静态 垂直承载力 |
| M | L | H | D | T | KG | ||
| 1 | SF-M830-40 | M6/8/10/ 12/14 | 30/50/70/ 80/100 | 16 | 40 | 2 | 350 |
| 2 | SF-M1050-40 | ||||||
| 3 | SF-M1050-50 | M8/10/12/ 14/16 | 30/50/80/ 100/120 | 18 | 50 | 2 | 400 |
| 4 | SF-M1280-50 | ||||||
| 5 | SF-M1280-60 | M10/12/14/ 16/18/20 | 50/70/80/100/ 120/150 | 20 | 60 | 2 | 550 |
| 6 | SF-M14100-60 | ||||||
| 7 | SF-M14100-70 | M12/14/16/18/ 20/22/24 | 50/70/80/ 100/120/150 | 20 | 70 | 2 | 700 |
| 8 | SF-M16120-70 | ||||||
| 9 | SF-M16120-80 | M12/14/16/ 18/20/24 | 50/70/80/100/120/140/150/ 180 | 23 | 80 | 2.5 | 900 |
| 10 | SF-M18130-80 | ||||||
| 11 | SF-M20130-80 | ||||||
| 12 | SF-M20130-100 | M12/14/16/18 /20/24/30 | 50/70/80/100 /120/140/150/180/200 | 25 | 100 | 2.5 | 1300 |
| 13 | SF-M22150-100 | ||||||
| 14 | SF-M24150-100 |
